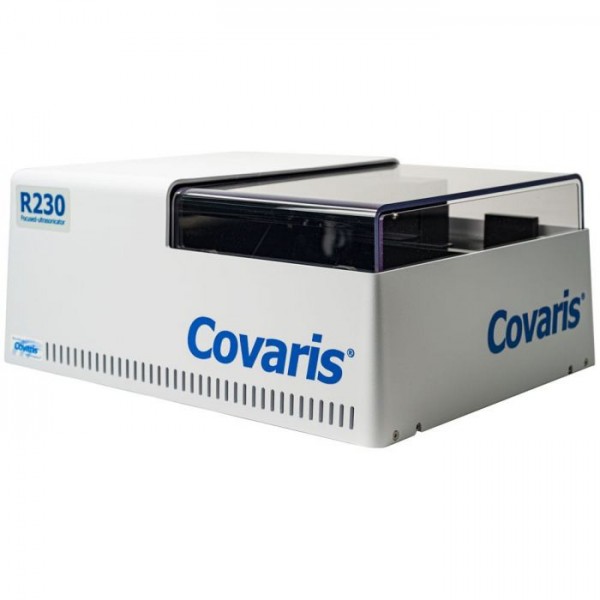

R230 Focused-ultrasonicator
Catalog No.
500620
The R230 Focused-ultrasonicator is the next generation AFA® powered instrument, and the first of the R-Series. The R230 can be fully integrated on many liquid handler platforms.
Read moreShow less* Free Delivery for Orders SGD$250 (excl. GST) & Above.
Brand:
500620
- Brand
- Covaris
- Primary Applications
- Bead mixing/pellet resuspension, Compound screening, DNA shearing, Hit validation, Low mass sample extraction: FFPE, tissue, and whole blood, Mammalian cell lysis, Target ID & validation
- Treatment Power
- .5 to 110 W Avg. Incident Power, 1.5 to 450 W PIP
- Part Number
- 500620
- Power Requirements
- 100 to 240 VAC 500VA, 50 to 60 Hz
- Operating Environment
- Ambient temperature: 19 °C to 25 °C (66 °F to 77 °F) Relative humidity: 30 to 70%
- Operating Temperature
- 5 °C to 40 °C
- Safety
- Complies with Low Voltage Directive 2006/95/EC. Certified to IEC/EN/UL 61010-1:2004 “Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use, Part1: General Requirements
- Regulatory Labeling
- CE, ETL Mark (for Product Safety), WEEE
- SonoLab Version
- SonoLab 10
- Operating System
- Microsoft Windows 10
- WCS
- WCS 3.0 included
- Chiller
- WCS 3.0 (Chiller and WCS in one unit- included with system purchase)
- Sample Processing Capacity
- 8 tubes in parallel
- NGS Sample Volumes
- 5 to 200 µl
- Recommended Batch Size
- 96 samples
- Covaris Consumables
- 96 AFA-TUBE TPX plate(with RFID), 384 AFA-TUBE TPX plate (with RFID)-In development, 1536 AFA-TUBE TPX plate (with RFID)-In development
- Upgrade Potential
- No
- Associated Accessories
- Automation Accessories
The R230 Focused-ultrasonicator is the next generation AFA® powered instrument, and the first of the R-Series. The R230 can be fully integrated on many liquid handler platforms.
• Treatment Power: .5 to 110 W Avg. Incident Power, 1.5 to 450 W PIP
• Sample Processing Capacity: 8 tubes in parallel
• NGS Sample Volumes: 5 to 200 µl
